DAHUA HDBW1231RA-Z-A 2MP Starlight HD-CVI IR Dome Camera w/ Motorised Lens

Purchase this product and earn 0 Points

Unit Sold :

SKU: HDBW1231RA-Z-A Categories: ,

Description

Product Highlights

  • Max. 30 fps@1080P
  • Starlight, 130dB true WDR, 3D NR
  • Autofocus, 2.7 mm–12 mm motorized lens
  • CVI/CVBS/AHD/TVI switchable
  • Super Adapt
  • Built-in mic
  • Max. IR length 60 m, Smart IR
  • IP67, IK10, 12 VDC

Product Catalogue

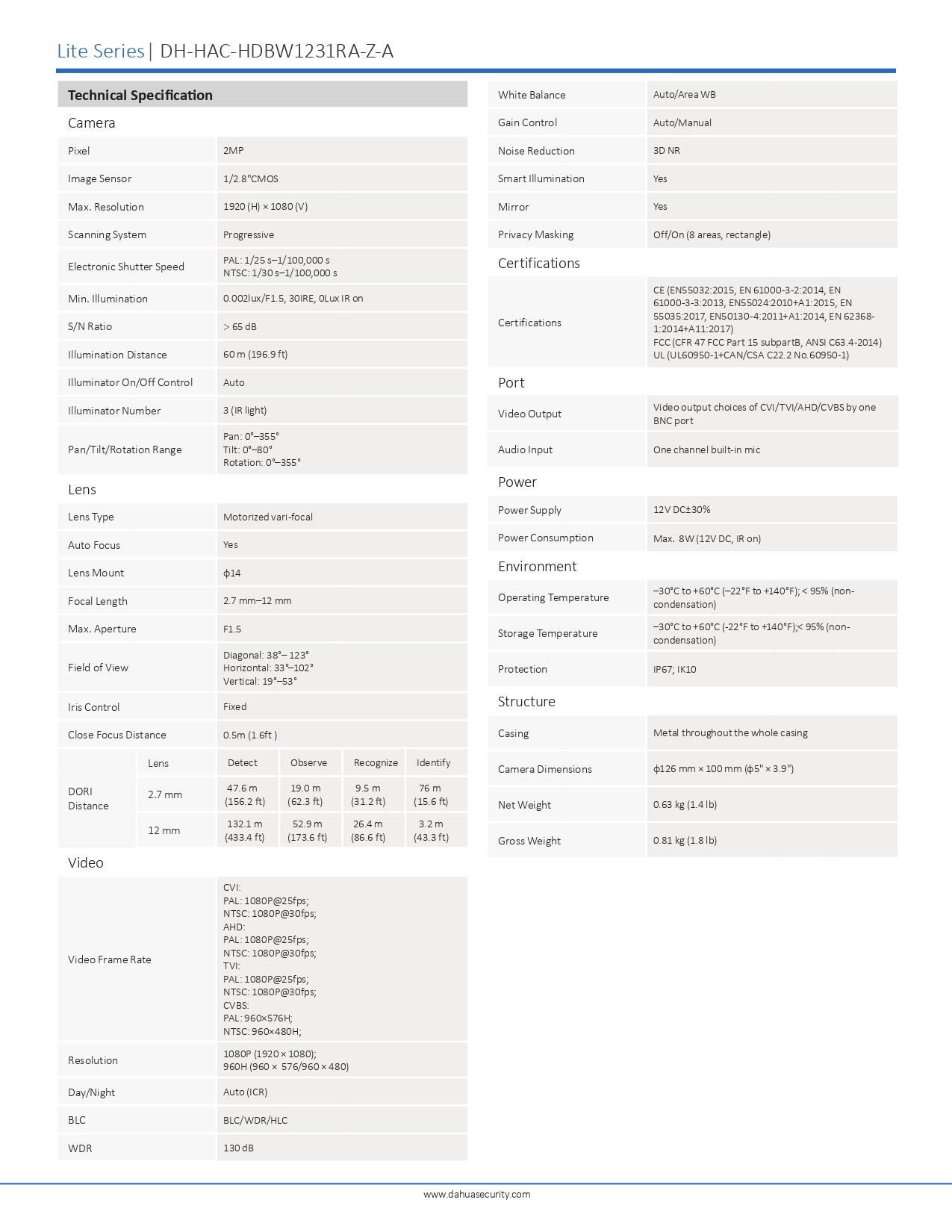

Product Specification

Camera
Pixel 2MP
Image Sensor 1/2.8″CMOS
Max. Resolution 1920 (H) × 1080 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination 0.002lux/F1.5, 30IRE, 0Lux IR on
S/N Ratio > 65 dB
Illumination Distance 60 m (196.9 ft)
Illuminator On/Off Control Auto
Illuminator Number 3 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Auto Focus Yes
Lens Mount φ14
Focal Length 2.7 mm–12 mm
Max. Aperture F1.5
Field of View Diagonal: 38°– 123°
Horizontal: 33°–102°
Vertical: 19°–53°
Iris Control Fixed
Close Focus Distance 0.5 m (1.6ft )
DORI Distance Lens Detect Observe Recognize Identify
2.7 mm 47.6 m (156.2 ft) 19.0 m

(62.3 ft)

 9.5 m

(31.2 ft)

 4.76 m

(15.6 ft)
12 mm 132.1 m (433.4 ft) 52.9 m (173.6 ft) 26.4 m (86.6 ft) 13.2 m

(43.3 ft)
Video
Video Frame Rate CVI:

PAL: 1080P@25fps;

NTSC: 1080P@30fps;

AHD:

PAL: 1080P@25fps;

NTSC: 1080P@30fps;

TVI:

PAL: 1080P@25fps;

NTSC: 1080P@30fps;

CVBS:

PAL: 960 × 576H;

NTSC: 960 × 480H
Resolution 1080P (1920 × 1080);
960H (960 × 576/960 × 480)
Day/Night Auto (ICR)
BLC BLC/WDR/HLC
WDR 130 dB
White Balance Auto/Area WB
Gain Control Auto/Manual
Noise Reduction 3D NR
Smart Illumination Yes
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certifications
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power
Power Supply 12 VDC±30%
Power Consumption Max. 8 W (12 VDC, IR on)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F); < 95% (non-condensation)
Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F); < 95% (non-condensation)
Protection IP67; IK10
Structure
Casing Metal throughout the whole casing
Camera Dimensions φ126 mm × 100 mm (φ5″ × 3.9″)
Net Weight 0.63 kg (1.4 lb)
Gross Weight 0.81 kg (1.8 lb)

Product Warranty

2 years
