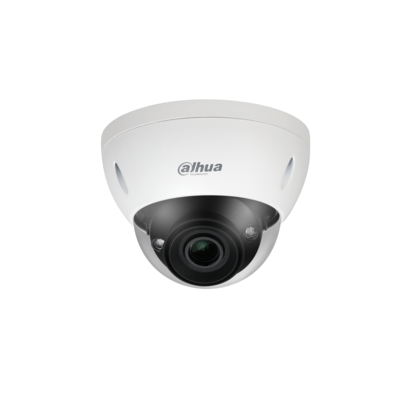

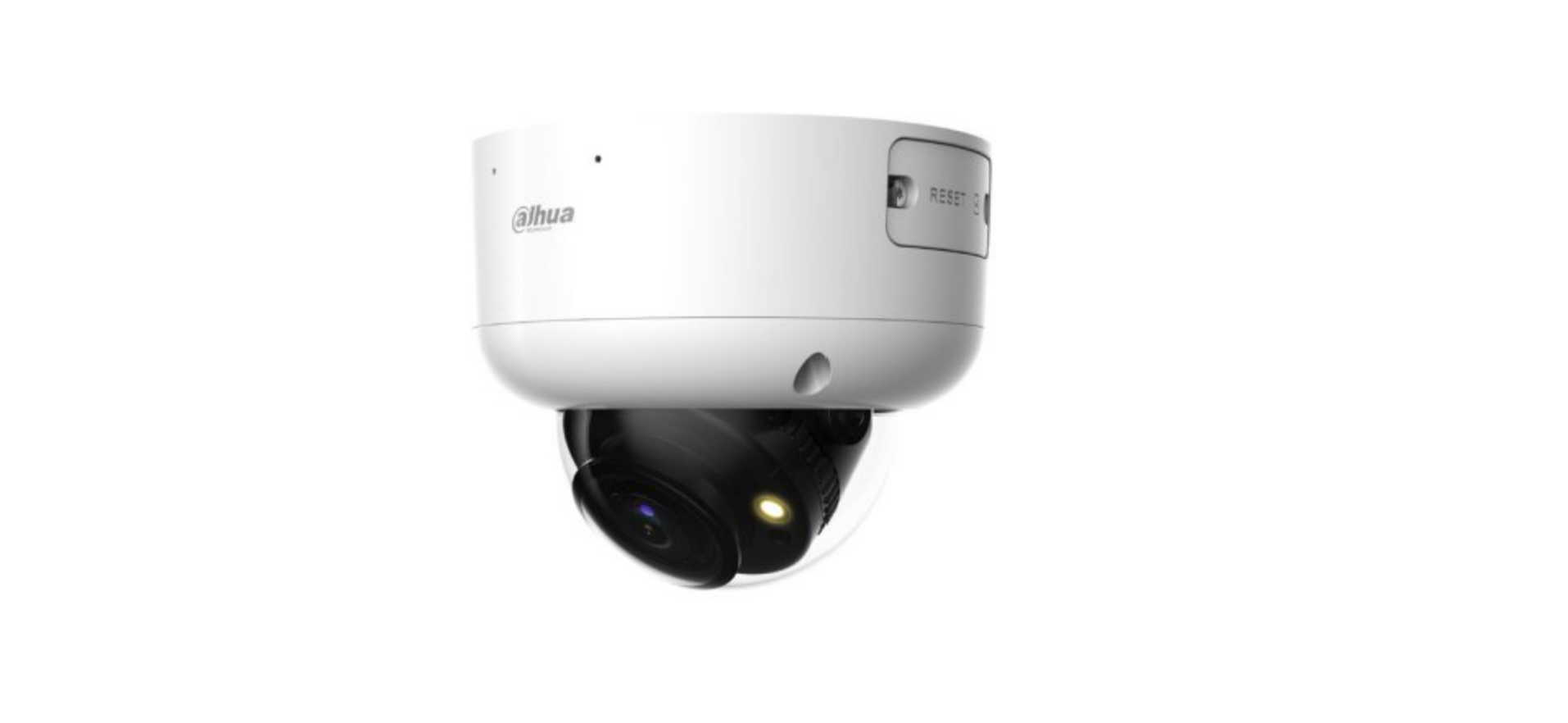

DAHUA HDBW5449R1-ZE-LED 4MP Full Colour Dome WizMind AI Network Camera

Purchase this product and earn 0 Points

Unit Sold :

SKU: HDBW5449R1-ZE-LED Categories: ,

Description

Product Highlights

  • 4MP 1/1.8″ CMOS image sensor, low illuminance, high image definition.
  • Outputs max. 4MP (2688 × 1520) @30 fps.
  • Built-in warm illuminator, and the max. illumination distance is 40 m.
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker.
  • 12V DC/PoE power supply.
  • ePoE, IP67, IK10 protection.
  • SMD 3.0

Product Catalogue


Product Specification

Camera
Image Sensor 1/1.8” CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 M
RAM 512 M
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination [email protected]
S/N Ratio > 56 dB
Illumination Distance 40m(131.2 ft)
Illuminator On/Off Control Auto; Manual; Zoomprio
Illuminator Number 3 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Mount Type φ16
Focal Length 2.7 mm–12 mm
Max. Aperture F1.0
Field of View Horizontal: 115°–48°

Vertical: 59°–27°

Diagonal: 142°–55°

Iris Type Auto
Close Focus Distance 1.75 m (5.74 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 60.4 m

(198.2 ft)

24.1 m

(79.1 ft)

12 m

(39.4 ft)

6 m

(19.7 ft)

T 128.6 m

(421.9 ft)

51.4 m

(168.6 ft)

25.7 m

(84.3 ft)

12.8 m

(42.0 ft)

Smart event
IVS Abandoned object; missing object
Heat Map Yes
Professional, intelligent
IVS (Perimeter Protection) Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Face Detection Face detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
People Counting Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/weekly/daily reports Support the counting of number in area, and 4 rules configuration Count number of people or stay time and link alarm Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/Smart H.264+
Video Frame Rate Main stream: 2688 × 1520 (1 fps–25/30 fps)

Sub stream: D1 (1 fps–25/30 fps)

Third stream: 1080p (1 fps–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability 3 streams
Resolution 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–20480 kbps

H.265: 3 kbps–20480 kbps

Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 140 dB
Scene Self-adaptation Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
Image Rotation 0°/90°/180°/270°
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; intrusion; tripwire; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; intensity change detection; people counting; face detection; people counting in area; stay alarm; people No. exception detection; queue management
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;

P2P

User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE: IE8 and later

Chrome

Firefox

Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android
Certification
Certifications CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5V DC
Alarm Output 1 channel out: 300mA 12V DC
Power
Power Supply 12V DC (±30%)/PoE (802.3af)/ePoE
Power Consumption Basic: 2.3 W (12 VDC); 3.3 W (PoE)

Max. (H.265 + 3 streams + intelligence + LED): 7.4 W (12 VDC); 9.0 W (PoE)

Environment
Operating Conditions –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Strorage Conditions –40°C to +60°C (–40°F to +140°F)
Protection Grade IP67; IK10
Structure
Casing Metal
Dimensions 105 mm × Φ126 mm (4.1″ × Φ5.0″)
Net Weight 716.4 g (1.6 lb)
Gross Weight 929.7 g (2.0 lb)

Product Warranty

2 years
