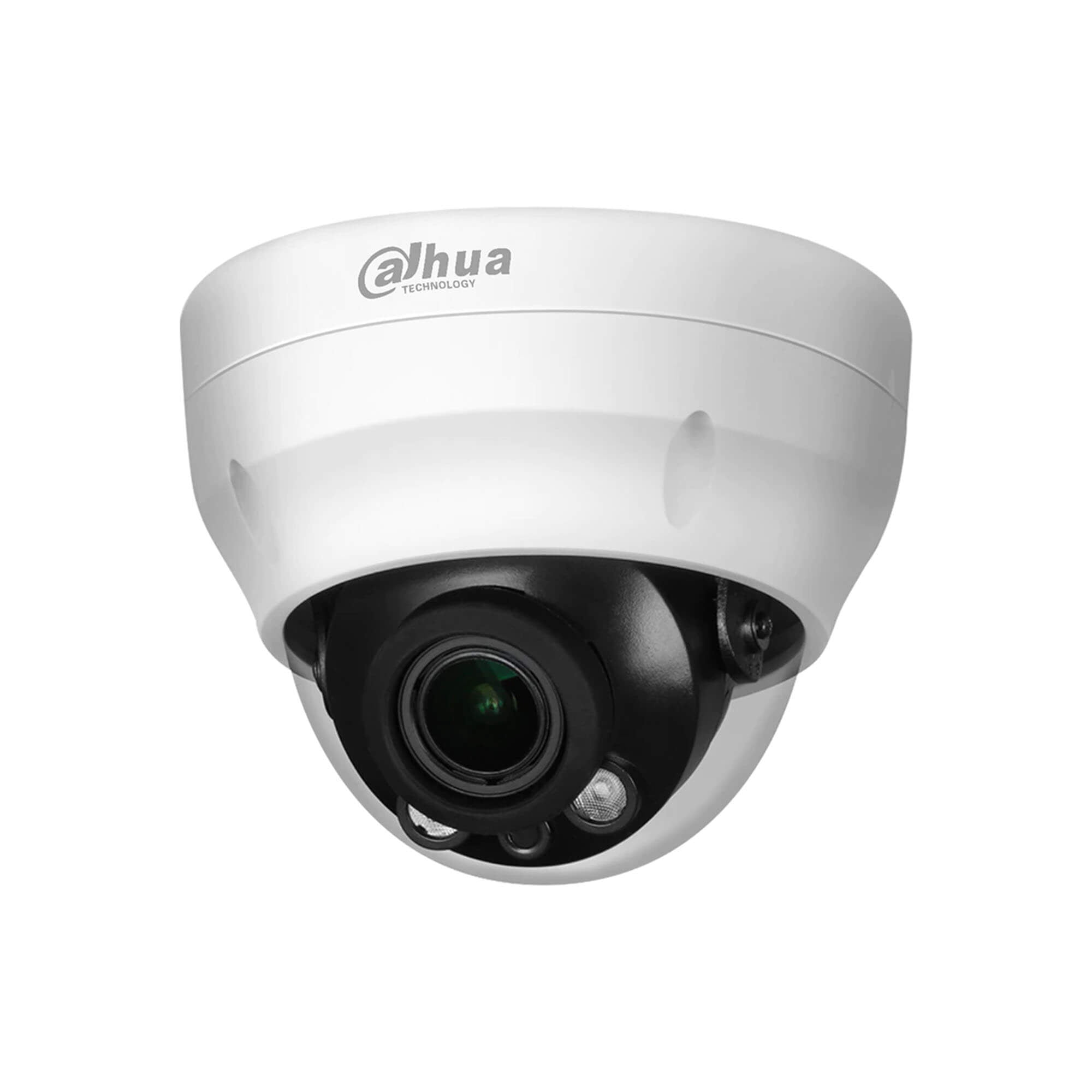

DAHUA HDPW1431R1-ZS-S4 4MP Entry IR Varifocal Dome Network Camera

Purchase this product and earn 0 Points

Unit Sold :

SKU: HDPW1431R1-ZS-S4 Categories: ,

Description

Product Highlights

  • 1/3″ CMOS Sensor, 30fps @ 4MP (2560 x 1440)
  • 0.03Lux
  • H.265+ Dual-Stream Encoding
  • IR LED up to 40m
  • Day&Night (ICR)
  • BLC
  • 3DNR, DWDR (True 120dB WDR for 1431 series)
  • Lens: 2.7 – 12mm Motorised Vari-focal
  • DC12V / PoE; IP67.
  • Plastic housing

Product Catalogue

Product Specification

Camera
Image Sensor 1/3 ”4Megapixel progressive CMOS
Max. Resolution 2688 (H) ×1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
S/N Ratio > 56 dB
Min. Illumination 0.03 Lux @ F1.7
Illumination Distance 40 m (131.2 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–355°

Tilt: 0°–75°

Rotation 0°–355°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.8 mm–12 mm
Max. Aperture F1.7
Field of View Horizontal: 98°–31°
Vertical: 55°–18°
Diagonal: 116°–36°
Iris Type Fixed
Close Focus Distance 0.8 m (2.6 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 66.0 m

(183.7 ft)

 26.4 m

(73.5 ft)

 13.2 m

(36.7 ft)

 6.6 m

(18.4 ft)
T 200.0 m (656.2 ft) 80.0 m

(262.5 ft)

 40.0m

(131.2 ft)

 20.0 m

(65.6 ft)
Video
Video Compression H.265; H.264; H.264B; MJPEG(only supported

by sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main Stream:
2688 × 1520 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
Sub Stream:
704 × 576 (1 fps–20/25 fps)
704 × 480 (1 fps–20/30 fps)
Stream Capability 2 streams
Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240)
Bit Rate Control CBR; VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Manual/Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Alarm
Alarm Event Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception; defocus detection;
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host 20
Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12V DC/POE (802.3af)
Power Consumption < 6.4W
Environment
Operating Conditions -30°C to +55°C (-22°F to +131°F) /less than≤95%
Strorage Conditions -40°C to +60°C (-40°F to +140°F)
Protection IP67
Structure
Casing Plastic
Dimensions 98.1 mm × Φ122 mm (3.9″ × Φ4.8″)
Net Weight 0.39 kg (0.9 lb)
Gross Weight 0.57 kg (1.3 lb)

Product Warranty

18 months
