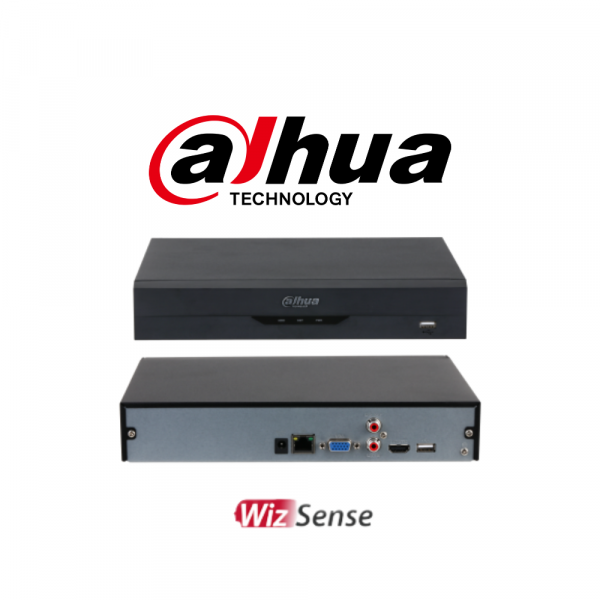

DAHUA NVR2116HS-I2 16CH WizSense AI Network Video Recorder

Purchase this product and earn 0 Points

Unit Sold :

SKU: NVR2116HS-I2 Categories: ,

Description

Product Highlights

  • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
  • Max. decoding capability: 6 × 1080p@30 fps. Supports adaptive decoding
  • 1-channel face detection and recognition (AI by NVR); 1-channel perimeter protection (AI by NVR); up to 10 face databases and 5,000 face images; 4-channel SMD Plus (AI by NVR);
  • AI by camera: Face detection and recognition, perimeter protection, and SMD Plus
  • Connected to the third-party network cameras
  • Security baseline 2.1

Product Catalogue

Product Specification

System
Main Processor Industrial-grade embedded processor
Operating System Embedded Linux
Operation Interface Web; local GUI
AI
AI by Camera Face detection; face recognition; perimeter protection; SMD Plus
AI by Device Face detection; face recognition; perimeter protection; SMD Plus
Perimeter Protection
Perimeter Performance AI by Device(Number of Channels) 1
Perimeter Performance of AI by Camera (Number of Channels) 4
Face Detection
Face Attributes 6 attibutes: Gender; age group (6); glasses; expressions (8); mouth mask; beard
Face Detection Performance of AI by Device (1080P) (Number of Channels) 1 (up to 12 face images/second)
Face Detection Performance of AI by Camera (Number of Channels) 5
Face Recognition
Face Database Capacity Up to 10 face databases with 5,000 images
Face Recognition Performance of AI by Device (1080P) (Number of Channels) 1 (up to 4 face images/second)
Face Recognition Performance of AI by Camera (Number of Channels) 5
SMD Plus
SMD Plus by Device 4
SMD Plus by Camera 6-channel SMD Plus (AI by camera): Detects tripwire and intrustion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away
Video
Access Channel 16 channels
Network Bandwidth AI off: Access: 144 Mbps; Storage: 144 Mbps; Forward: 72 Mbps
AI on: Access: 72 Mbps; Storage: 72 Mbps; Forward: 36 Mbps
Resolution 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1
Decoding Capability AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps
AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps
Video Output 1 × VGA, 1 × HDMI (simultaneous)
Multi-screen Display 1, 4, 8, 9, 16 views
Third Party Camera Access Onvif; RTSP;
Compression
Video Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio PCM; G711A; G711U; G726
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration
Mobile Phone Access Android; iOS
Interoperability ONVIF (profile T; profile S; profile G); CGI; SDK
Browser Chrome; IE9 or later; Firefox
Record Playback
Multi-channel Playback Up to 16 channels
Record Mode Manual record; alarm recordings; motion detection recordings; scheduled recordings
Storage Local HDD and network
Backup USB device
Playback Function 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (vide clip/file); partially zom in; audio on/off
Alarm
General Alarm Motion detection; privacy masking; video loss; PIR alarm; IPC alarm
Anomaly Alarm Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception
Intelligent Alarm Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus
Alarm Linkage Recording; snapshot; buzzer; log; preset; email; tour

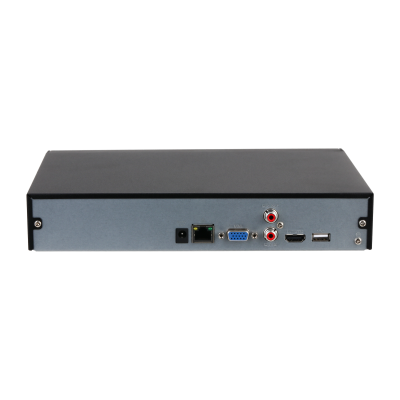

External Port
HDD 1 SATA port, up to 10 TB. The maximum HDD capacity varies with environment temperature
USB 1 × front USB2.0; 1 × back USB2.0
HDMI 1 (max. resolution: 4K)
VGA 1
Network 1 × RJ-45, 10/100/1,000 Mbps
RCA Input 1
RCA Output 1
RCA Output 1
General Parameter
Power Supply 12 V DC, 1.5 A
Power Consumption Total output of NVR is ≤ 10 W (without HDD)
Net Weight 0.81 kg (1.79 lb)
Gross weight 1.38 kg (3.04 lb)
Product Dimensions 260 mm × 232.7 mm × 47.6 mm (10.24″ × 9.16″ × 1.87″) (W × L × H)
Package Dimensions 89 mm × 333 mm × 315 mm (3.50″ × 13.11″ × 12.40″) (W × L × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity 10%–93%
Storage Humidity 30%–85%
Operating Altitude 3,000 m (9,842.52 ft)
Installation Desktop
Certifications FCC:47 CFR FCC Part15,SubpartB,Class A
CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014
CE-LVD:EN 62368-1:2014+A11:2017

Product Warranty

2 years
