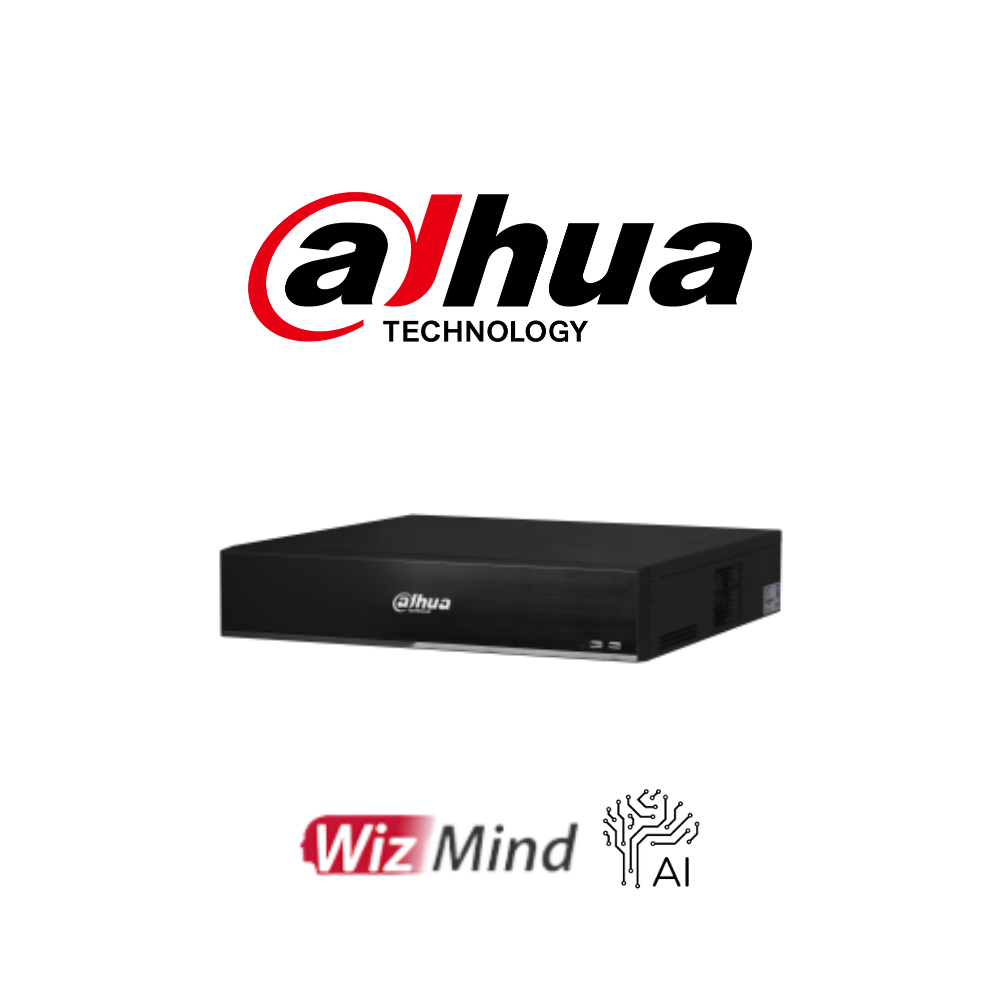

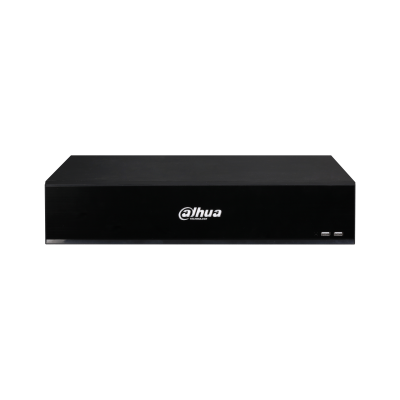

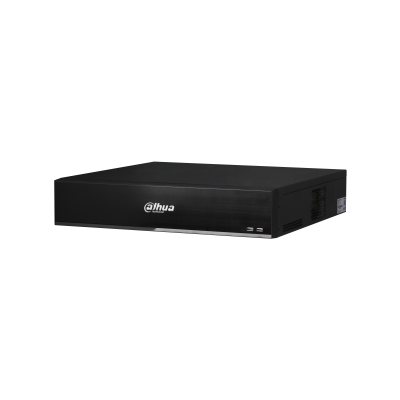

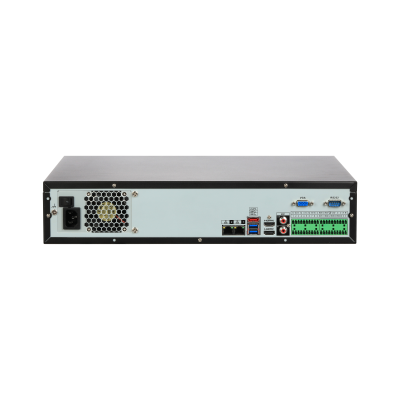

DAHUA NVR5832-I/L 32CH 2U 4K H.265 AI Network Video Recorder

Purchase this product and earn 0 Points

Unit Sold :

SKU: NVR5832-I/L Categories: ,

Description

Product Highlights

  • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
  • Up to 4 Channel video metadata
  • Up to 12 Channel perimeter protection,SMD Plus
  • Up to 4 Channel video stream face recognition
  • Up to 16 face pictures/sec processing
  • Up to 20 face databases with 200,000 face images in total

Product Catalogue

Product Specification

System
Main Processor Multi-core embedded processor
Operating System Embedded LINUX
Perimeter Protection
Performance 12 channel, 10 IVS rules for each channel
Object classification Human/Vehicle secondary recognition for tripwire and intrusion
AI Search Search by target classification (Human, Vehicle)
Face Recognition
Performance Max 16 face pictures/sec processing (modeling and comparing)
4 channel video stream face recognition/16 channel picture stream face recognition (with FD camera)
Stranger Mode Detect strangers’ faces (not in device’s face database).Similarity threshold can be set manually.
AI Search Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management Up to 20 face databases with 200,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Database Application Each database can be applied to video channels independently.
Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
Metadata
Face Gender, age, glasses, beard, mouth mask, expression.
Vehicle Plate No., type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, region.
Human Body Top, top color, bottom, bottom color, hat, bag, gender, age, umbrella.
Non-motor Vehicle Type, color, number of passengers, helmet.
AI Search Support search target video by metadata.
Audio and Video
IP Camera Input 32 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 2 HDMI, 1 VGA
Resolution HDMI1/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI2: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Decoding Capability 4-ch@8MP (30fps), 16-ch@1080P (30fps)
Multi-screen Display 1st Screen: 1/4/8/9/16/25/36

2nd Screen: 1/4/8/9/16
Recording
Bandwidth 320 Mbps (160 Mbps when AI function enabled)
Compression Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Record Mode Manual, Schedule (Continuous, MD (Motion Detection), Alarm, IVS)
Record Interval 1–120 min (default: 60 min), Pre-record: 1–30 sec, Post-record: 10–300 sec
Raid Support Raid0,Raid1,Raid5,Raid10
Video Detection and Alarm
Trigger Events Alarm Out, Video Push, Email, Recording, PTZ, Tour, Snapshot, Voice Prompt, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Scene Change
Alarm input 16 Channel
Relay Output 6 Channel
Playback and Backup
Sync Playback 1/4/9/16
Search Mode Time/Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode USB Device/Network
Third-party Support
Third-party Support Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and more
Network
Interface 2 RJ-45 Ports (10/100/1000 Mbps)
PoE N/A
Network Protocol HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P
Max. User Access 128 users
Mobile App iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI
Storage
Internal HDD 8 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
eSATA 1 eSATA
Auxiliary Interface
USB 4 USB Ports (2 Rear USB 3.0, 2 Front USB 2.0)
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
Electrical
Power Supply Single, AC100V–240V, 50–60 Hz
Power Consumption NVR: <16.1W (Without HDD)
Fan Smart fan, automatically adjust running speed
Environmental
Operating Conditions -10°C to +55°C (+14°F to +131°F), 86–106kpa
Storage Conditions 0°C to +40°C (+32°F to +104°F), 30–85% RH
Construction
Dimensions 2U, 439.7 mm × 451.0 mm × 94.9 mm (17.31″ × 17.75″ × 3.73″)
Net Weight 6.70 kg (14.8 lb) (without HDD)
Gross Weight 9.30 kg (20.5 lb) (without HDD)
Certifications
CE EN55032, EN55024, EN50130-4, EN62368-1
FCC Part 15 Subpart B, ANSI C63.4-2014

Product Warranty

2 years
