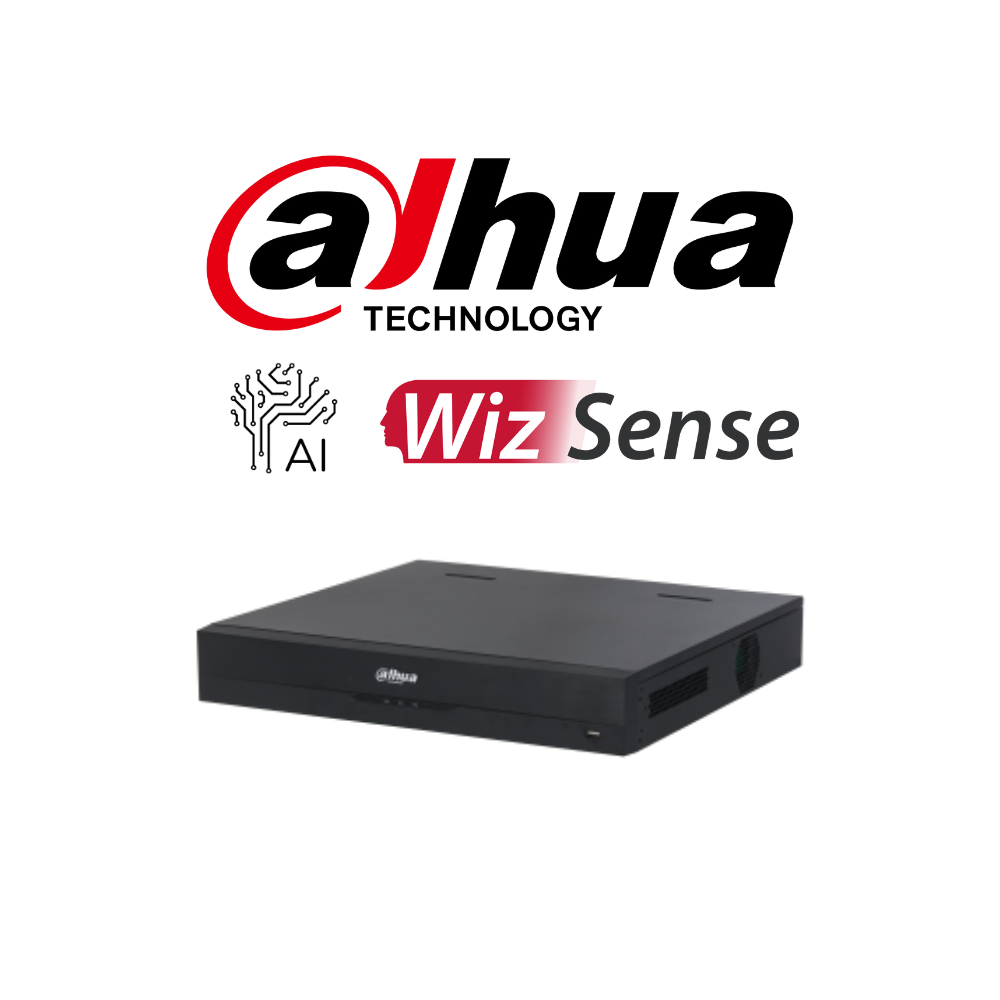

DAHUA XVR5432L-4KL-I2 32 Channel Penta-brid 4K-N/5MP 1.5U WizSense Digital Video Recorder

Purchase this product and earn 0 Points

Unit Sold :

SKU: XVR5432L-4KL-I2 Categories: ,

Description

Product Highlights

  • H.265+ 8MP Pentabrid DVR with 2HDMI 4K, VGA & TV display output
  • 32 channels 4K@7fps
  • Supports 32 IPC (each up to 12MP) – Max 128Mbps
  • Audio 4/1, Alarm 16/6, GE, IoT & POS
  • Face Recognition, Perimeter Protection, SMD Plus
  • Max 4 x HDD up to 10TB each disk, eSATA, RS485, RS232

Product Catalogue

Product Specification

System
Main Processor Embedded Processor
Operating System Embedded LINUX
Perimeter Protection
Performance 6 channels, 10 IVS for each channel
Object classification Human/Vehicle secondary recognition for tripwire and intrusion
AI Search Search by target classification (Human, Vehicle)
Face Recognition
Performance 6 channels, max 12 face pictures/sec processing
Stranger Mode Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually.
AI Search Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.
Database Application Each database can be applied to video channels independently .
Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
Performance 32 channels
AI Search Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input 32 channels, BNC
HDCVI Camera Input 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps,

720P@25/30fps
AHD Camera Input 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input 4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera Input PAL/NTSC
IP Camera Input 32 channels, each channel up to 12MP
Audio In/Out 4/1, BNC
Two-way Talk 1 Mic In, 1 Mic Out, BNC
Recording
Compression AI Coding/H.265+/H.265/H.264+/H.264
Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate Main stream: All channel 4K(1fps–7fps); 6MP(1fps–

10fps); 5MP(1fps–12fps); 4K-N, 4MP/3MP(1fps–15fps);

4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps);

Sub steram:960H(1fps–15fps);

D1/CIF(1fps–25/30fps)
Bit Rate 32 Kbps–6144 Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression G.711A, G.711U, PCM
Audio Sample Rate 8 KHz, 16 bit Per Channel
Audio Bit Rate 64 Kbps Per Channel
Display
Interface 2 HDMI, 1 VGA, 1 TV
Resolution HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display 1/4/8/9/16/25/36
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 1 RJ-45 Port (1000 Mbps)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input 16
Relay Output 6
Playback and Backup
Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 4 SATA Ports, up to 10TB capacity for each disk
eSATA 1 Port
Auxiliary Interface
USB 3 USB Ports (1 USB 2.0 , 2 USB 3.0)
RS485 1 Port, for PTZ Control
RS232 1 Port, For PC Communication & Keyboard
Electrical
Power Supply AC100V-240V, 50/60Hz
Power Consumption

(Without HDD)

 <30W
Construction
Dimensions 1.5U, 440 mm × 421 mm × 76 mm

(17.32” × 16.54” × 2.99”)
Net Weight

(without HDD)

 4.9 kg (10.8 lb)
Gross Weight 7.2 kg (15.8 lb)
Installation Desktop/racket mounted
Environmental
Operating Conditions -10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions -20°C to +70°C (-4°F to +158°F) , 0–90% RH
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

Product Warranty

2 years
