Description
Product Highlight

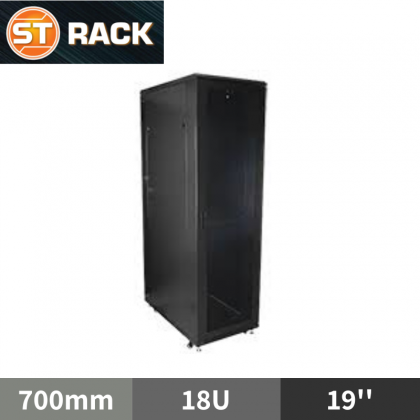

- ST-Rack Equipment Enclosure Rack
- Structure design and multi vendor server rack
- Come with depth of 700mm
- Provide two choices of the front outlook
- Easy lift off door hinge provide convenience
- Creating workspace for high density 19″ rack mount equipment
- Size : 18U x 600mm x 700mm
Product Description
ST-Rack Equipment Enclosure Rack is a CKD (Complete Knock Down) Structure Design and multi vendor server rack. It come with depth of 600mm to 1200mm. ST-Rack also provide two choices of the front outlook such as Perforated Type and Perspex Type. Easy lift off door hinge provide convenience and creating works space for high density 19″ rack mount equipment.
- Top cover with Ventilation Fan position for 4 Fan (Optional)
- Cable entry provided for the Top and Buttom
- Front Perforated or Perspex Metal Door with swing handle and flush lock
- Load rating of 500kg SWL
- Rear Perforated metal door with lock
- 4 Universal adjustable panel mounting members
- 2 Detachable side panel with lock
- Power cable with plug top
- 40 sets of M6 Caged nuts.
- 1 set adjustable feet
- 1 set castor wheels.(Front Braking System)
- 100mm, 150mm Plinth (optional)
- Epoxy high quality powder coated finishing (Black colour).
- A wide range of accessories
- Rack framework in CKD (Complete Knock Down)
Product Detail
- IEC 297-2
- DIN 41494, Part 7
- DIN 41491, Part 1 Mounting Dimension
- EN 60950
- VDE 0100
- EIA-310-D
- 1U = 44.45mm
Product Accessories
- Adjustable Feets/ Castor Wheel
- Flush Lock
- Perspex Door/ Perforated Door
- Panel Mounting Member
- M6 Caged Nuts
- Power Distribution Unit/Power Outlets
What’s in the box?
- Ventilation Fan
- Sliding Tray
- 1U Cable Management Panel
- Equipment Tray
- Cantilever Tray
- Power Outlet
- Base Plinth
- Panel Mounting Member
- 2 detachable side panel with Latch and lock
Product Warranty
1 year
