Description
Product Highlights

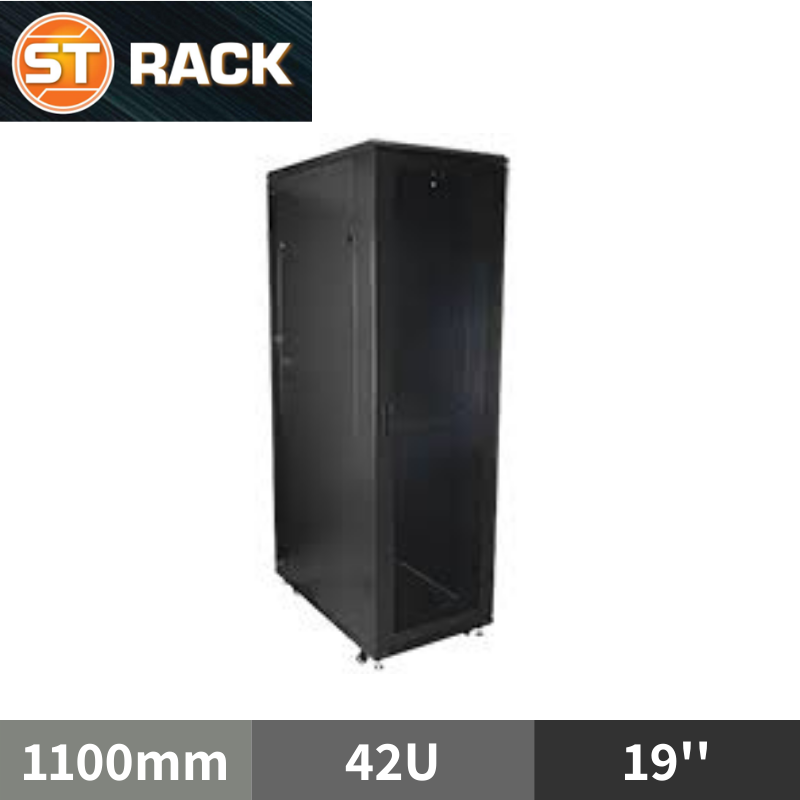

- ST-Rack Equipment Enclosure Rack
- Structure design and multi-vendor server rack
- Come with a depth of 1100mm
- Provide two choices of the front outlook
- Easy lift-off door hinge provides convenience
- Creating a workspace for high-density 19″ rack-mount equipment
- Size : 42U x 600mm x 1100mm
Product Description
ST-Rack Equipment Enclosure Rack is a CKD (Complete Knock Down) Structure Design and multi-vendor server rack. It comes with a depth of 600mm to 1200mm. ST-Rack also provides two front outlook choices: Perforated Type and Perspex Type. Easy lift-off door hinge provides convenience and creates workspace for high-density 19″ rack-mount equipment.
- Top cover with Ventilation Fan position for 4 Fan (Optional)
- Cable entry provided for the Top and Bottom
- Front Perforated or Perspex Metal Door with swing handle and flush lock
- Load rating of 500kg SWL
- Rear Perforated metal door with lock
- 4 Universal adjustable panel mounting members
- 2 Detachable side panels with a lock
- Power cable with plug top
- 40 sets of M6 Caged nuts.
- 1 set of adjustable feet
- 1 set of castor wheels. (Front Braking System)
- 100mm, 150mm Plinth (optional)
- Epoxy high-quality powder-coated finishing (Black color).
- A wide range of accessories
- Rack framework in CKD (Complete Knock Down)
Product Detail
- IEC 297-2
- DIN 41494, Part 7
- DIN 41491, Part 1 Mounting Dimension
- EN 60950
- VDE 0100
- EIA-310-D
- 1U = 44.45mm
Product Accessories
- Adjustable Feets/ Castor Wheel
- Flush Lock
- Perspex Door/ Perforated Door
- Panel Mounting Member
- M6 Caged Nuts
- Power Distribution Unit/Power Outlets
Product Warranty
1 year
