Description
Product Highlights
- 24 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves the power up to 67%
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop or wall-mounting design
- Plug and play, no configuration required

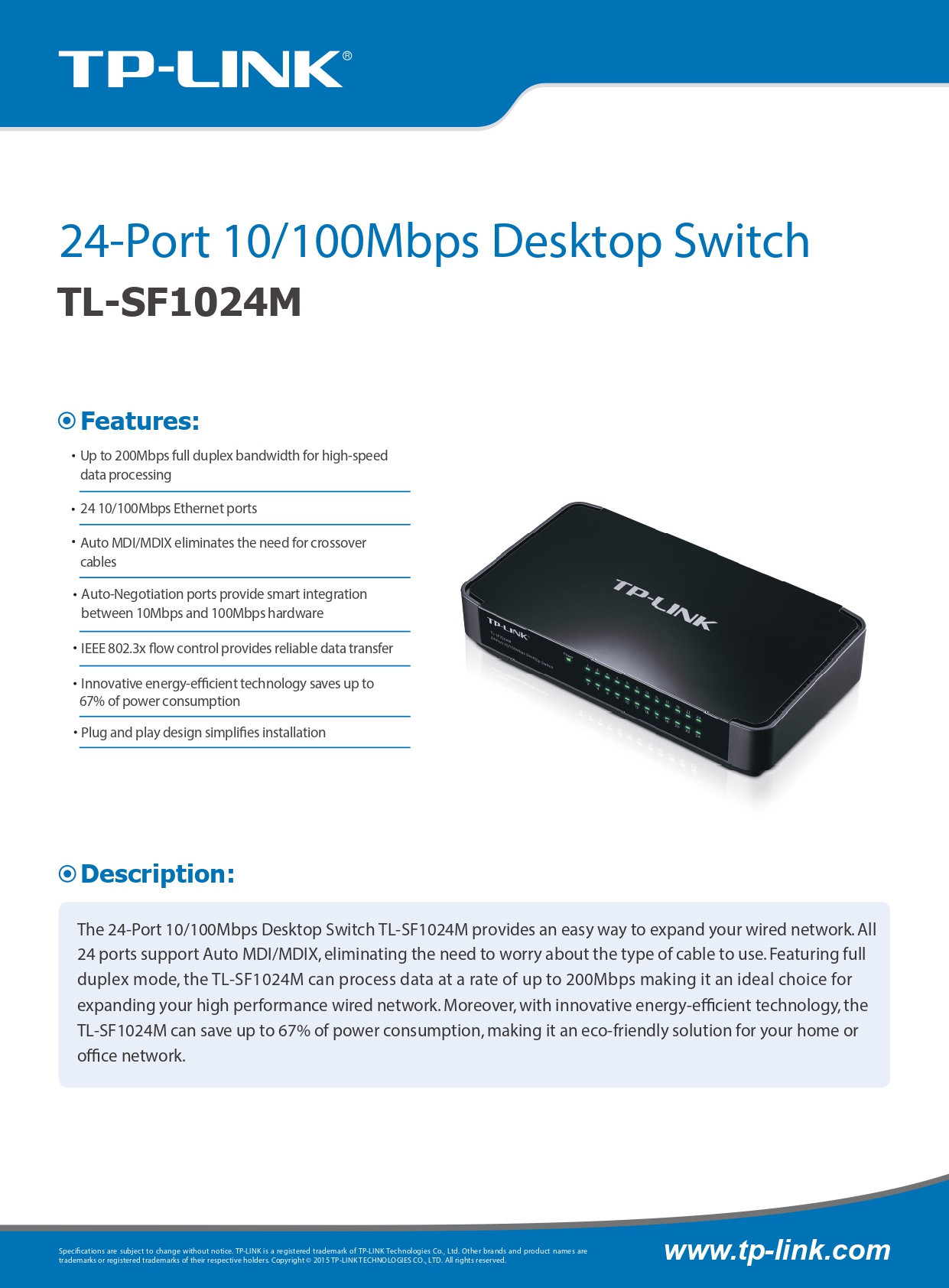

Product Catalogue
Product Specification
| HARDWARE FEATURES | |
|---|---|
| Interface | 24 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 9VDC / 0.6A) |
| Mac Address Table | 8K |
| Dimensions ( W x D x H ) | 8.7 x 5.0 x 1.8 in. ( 222 x 126 x 45 mm) |
| Max Power Consumption | 3.36W(220V/50Hz) |
| Max Heat Dissipation | 11.46BTU/h |
| SOFTWARE FEATURES | |
|---|---|
| Transfer Method | Store and Forward |
| Advanced Functions | Green Technology, saving power up to 67% 802.3X Flow Control, Back Pressure |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHs |
| Package Contents | 24-Port 10/100Mbps Desktop Switch TL-SF1024M Power Adapter Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
Product Warranty
1 year
